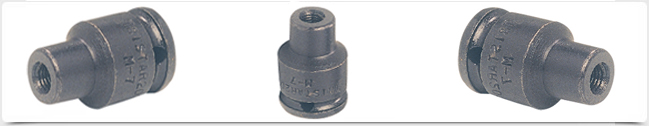

Stud Drivers / Tighteners
3/8" Square Drive
| SAE SIZE | METRIC SIZE | ||
| Part No. | Stud Dia | Part No. | Stud Dia |
| SD-2 1/4" UNF | 1/4" UNF | SDM-206/1.00 | M6 x 1.0 |
| SD-2 1/4" BSF | 1/4" BSF | SDM-207/1.00 | M7 x 1.0 |
| SD-2 5/16" UNF | 5/16" UNF | SDM-208/1.25 | M8 x 1.25 |
| SD-2 5/16" BSF | 5/16"BSF | SDM-208/1.00 | M8 x 1.00 |
| SD-2 3/8" UNF | 3/8" UNF | SDM-210/1.50 | M10 x 1.50 |
| SD-2 3/8" BSF | 3/8" BSF | SDM-210/1.25 | M10 x 1.25 |
1/2" Square Drive
| SAE SIZE | METRIC SIZE | ||
| Part No. | Stud Dia & Pitch | Part No. | Stud Dia & Pitch |
| SD-3 1/4" UNF | 1/4" UNF | SDM-306 | M6 x 1.00 |
| SD-3 1/4" BSF | 1/4" BSF | SDM-307 | M7 x 1.00 |
| SD-3 5/16" UNF | 5/16" UNF | SDM-308 | M8 x 1.25 |
| SD-3 5/16" BSF | 5/16"BSF | SDM-308/1 | M8 x 1.00 |
| SD-3 3/8" UNF | 3/8" UNF | SDM-310 | M10 x 1.50 |
| SD-3 3/8" BSF | 3/8" BSF | SDM-310/1.25 | M10 x 1.25 |
| SD-3 1/2" UNF | 1/2" UNF | SDM-312 | M12 x 1.75 |
| SD-3 1/2" BSF | 1/2" BSF | SDM-312/1.25 | M12 x 1.25 |
| SD-3 9/16" UNF | 9/16" UNF | SDM-314 | M14 x 2.00 |
| SD-3 9/16" BSF | 9/16" BSF | SDM-314/1.50 | M14 x 1.50 |
| SD-3 5/8" UNF | 5/8" UNF | SDM-316 | M16 x 2.00 |
| SD-3 5/8" BSF | 5/8" BSF | SDM-316/1.5 | M16 x 1.50 |
3/4" Square Drive
| SAE SIZE | METRIC SIZE | |||
| Part No. | Bolt Size | Part No. | Bolt Size | Thread Length |
| SD-4-5/8" UNF | 5/8" UNF | SDM-416 | M 16 x 2.0 | 20 |
| SD-4-5/8" BSF | 5/8" BSF | - | - | 20 |
| SD-4-3/4" UNF | 3/4" UNF | SDM-420 | M 20 x 2.0 | 24 |
| SD-4-3/4" BSF | 3/4" BSF | - | - | 24 |
| SD-4-7/8" UNF | 7/8" UNF | SDM-422 | M 22 x 2.5 | 24 |
| SD-4-7/8"BSF | 7/8" BSF | - | - | 24 |
| SD-4-1" UNF | 1" UNF | SDM-424 | M 24 x 3.0 | 24 |
| SD-4-1" BSF | 1" BSF | - | - | 24 |
1" Square Drive
| SAE SIZE | METRIC SIZE | |||
| Part No. | Bolt Size | Part No. | Bolt Size | Thread Length |
| SD-5-7/8" UNF | 7/8" UNF | - | - | 30 |
| SD-5-7/8" BSF | 7/8" BSF | - | - | 30 |
| SD-5-1" BSF | 1" UNF | SDM-524 | M 24 x 3.0 | 32 |
| SD-5-1" BSF | 1" BSF | - | - | 32 |
| SD-5-1.1/8" UNF | 1.1/8" UNF | SDM-527 | M 27 x 3.0 | 35 |
| SD-5-1.1/8"BSF | 1.1/8" BSF | - | - | 35 |
| SD-5-1.1/4" UNF | 1.1/4" UNF | SDM-530 | M 30 x 3.5 | 40 |
| SD-5-1.1/4" BSF | 1.1/4" BSF | - | - | 40 |
| SD-5-1.3/8" UNF | 1.3/8" UNF | SDM-533 | M 33 x 3.5 | 40 |
| SD-5 1.3/8" BSF | 1.3/8" BSF | - | - | 40 |
| SD-5-1.1/2" UNF | 1.1/2" UNF | SDM-536 | M 36 x 4.0 | 48 |
| SD-5-1.1/2" BSF | 1.1/2" BSF | - | - | 48 |
