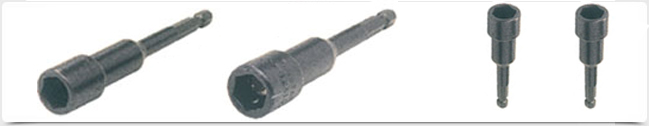

Nut Setters / Runners
| Part No. | Hex Drive | Across | Socket | OAL |
| Flat | Nose Dia(mm) | (mm) | ||
| TNR-106 | 1/4" | 6 | 11.0 | 75 |
| TNR-106L | 1/4" | 6 | 11.0 | 100 |
| TNR-106X | 1/4" | 6 | 11.0 | 150 |
| TNR-107 | 1/4" | 7 | 12.0 | 75 |
| TNR-107L | 1/4" | 7 | 12.0 | 100 |
| TNR-107X | 1/4" | 7 | 12.0 | 150 |
| TNR-108 | 1/4" | 8 | 13.0 | 75 |
| TNR-108L | 1/4" | 8 | 13.0 | 100 |
| TNR-108X | 1/4" | 8 | 13.0 | 150 |
| TNR-109 | 1/4" | 9 | 15.0 | 75 |
| TNR-109L | 1/4" | 9 | 15.0 | 100 |
| TNR-109X | 1/4" | 9 | 15.0 | 150 |
| TNR-110 | 1/4" | 10 | 16.0 | 75 |
| TNR-110L | 1/4" | 10 | 16.0 | 100 |
| TNR-110X | 1/4" | 10 | 16.0 | 150 |
| TNR-111 | 1/4" | 11 | 17.5 | 75 |
| TNR-111L | 1/4" | 11 | 17.5 | 100 |
| TNR-111X | 1/4" | 11 | 17.5 | 150 |
| TNR-112 | 1/4" | 12 | 18.5 | 75 |
| TNR-112L | 1/4" | 12 | 18.5 | 100 |
| TNR-112X | 1/4" | 12 | 18.5 | 175 |
| TNR-113 | 1/4" | 13 | 19.5 | 75 |
| TNR-113L | 1/4" | 13 | 19.5 | 100 |
| TNR-113X | 1/4" | 13 | 19.5 | 150 |
| TNR-114 | 1/4" | 14 | 20.5 | 75 |
| TNR-114L | 1/4" | 14 | 20.5 | 100 |
| TNR-114X | 1/4" | 14 | 20.5 | 150 |
NOTE: WE CAN ALSO CATER TO THE NEEDS OF NUTS RUNNER OF ALL SIZES WITH FIXED & SPRING LOADED MAGNETS FOR BOLT CLEARANCE TYPE NEEDS AND IN UNIVERSAL TYPE ALSO AVAILABLE |
||||
