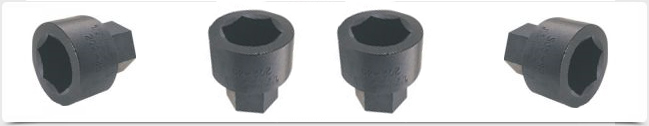

Insert Sockets




METRIC SIZE SAE SIZE
Part No. Male Female Hex A/F Part No. Male Female Hex A/F Bolt Clearance Hole (mm) O.D (mm) OAL (mm)
TIS-29 15/16" TISM-24 24 24 50 75
TIS-31 1.1/16" TISM-27 27 24 52 75
TIS-32 1.1/8" TISM-30 30 24 54 75
TIS-34 1.1/4" TISM-32 32 24 54 75
TIS-35 1.5/16" TISM-33 33 24 56 75
TIS-36 1.3/8" TISM-35 35 24 58 75
TIS-37 1.7/16' TISM-36 36 26 60 75
TIS-38 1.1/2" TISM-38 38 28 62 75
TIS-39 1.5/8" TISM-41 41 29 66 85
TIS-40 1.11/16" TISM-43 43 31 68 85
- - TISM-44 44 31 68 85
TIS-42 1.13/16" TISM-46 46 32 72 88
TIS-43 1.7/8" TISM-47 47 34 74 88
TIS-45 2" TISM-50 50 37 78 94
TIS-46 2.1/16" TISM-52 52 37 80 94
TIS-47 2.3/16" TISM-55 55 38 84 96
TIS-48 2.1/4" - - 40 86 96
TIS-50 2.3/8" TISM-60 60 41 90 108
TIS-51 2.7/16" - - 43 92 108
TIS-53 2.9/16" TISM-65 65 44 96 112
TIS-54 2.5/8" - - 47 98 112
TIS-56 2.3/4" TISM-70 70 48 102 120
TIS-57 2.13/16" - - 50 105 120
TIS-59 2.15/16" TISM-75 75 52 109 127
TIS-60 3" - - 53 111 127
TIS-61 3.1/8" TISM-80 80 55 115 135
TIS-63 3.3/8" TISM-85 85 60 122 140
TIS-64 3.1/2" TISM-90 90 65 126 145
TIS-65 3.3/4" TISM-95 95 70 134 150
TIS-66 3.7/8" TISM-100 100 70 138 155
TIS-68 4.1/8" TISM-105 105 80 146 155
TIS-69 4.1/4" TISM-110 110 84 150 175
TIS-70 4.1/2" TISM-115 115 88 160 180
TIS-71 4.5/8" TISM-120 120 90 162 190
TIS-73 4.7/8" TISM-125 125 90 170 190
TIS-74 5" TISM-130 130 92 173 205
TIS-76 5.1/4" TISM-135 135 97 182 205
TIS-77 5.3/8" - - 100 186 210
TIS-79 5.5/8" TISM-140 140 104 189 210
TIS-80 5.3/4" TISM-145 145 109 194 215
