Torque Multiplier
A powerful robust, Versatile portable and Accurate Tool :
Tristar torque Multipliers provides extra mechanical advantage needed to tighten or loosen stubborn nuts and bolts located in cramped or (in accessible) positions. A manual Tool, particularly recommended where no compressed air/electric power available for use of Power Tools.
Tristar torque Multipliers increases the torque capacity of Torque Wrenches , Hand Ratchets/Wheel Braces at the input end by a factor depending on the model selected. This enables the operator to achieve high levels of torque safely and easily.
With continuous R & D efforts, we have two variety of torque multipliers in our product range the conventional
‘AM’ series and a more compact and light weight ‘TVR’ series.
A testimony on the use of Tristar Torque multipliers from our client at Estonia , M/s Metsateknika As.
We tested this tool in January 2003, Hydraulic Hammer was Krupp HM 1500 Marathon V. First Tightening of Bolts (55 mm) was 500 Nm. After that , We had to Tighten Bolts two times 120” Degree (240 Degree). It was really easy to do this job with Tristar Torque Multiplier 9/25. The Tightening arm was only 45 cm long. During final tightening, I mentioned how our mechanic smiled. It was easy to do the job only with one hand he has really good tool. Next day I told about this experience to our good friends in Finland-Jasto Oy . There are selling Atlas Copco and Krupp Hydraulic Hammers in Finland. Now there are also thinking about buying this Torque Multiplier.“ Mr. Harri Ummik.

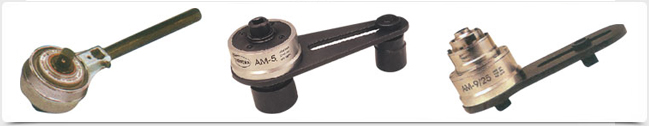

AM - Series
| Hand Torque Model No. | Maximum |
EST. Bolt Capacity (S.Quality) |
Multi- Plication Factor |
Female Input Square | Male Output Square | Major DIA | 220 Depth |
Recom Mended Torque Wrench |
Approx weight with reaction plate | |||
| Lbft. | Nm. | Kgf.m. | In | mm | In. | In. | Mm | mm | No.(Kg.) | |||
| AM-1 | 1250 | 1700 | 170 | 1.1/8 | 27 | 5 | 1/2 | 3/4 | 115 | 87 | TVTR-3000A | 4.5 |
| AM-2 | 1250 | 1700 | 170 | 1.1/8 | 27 | 5 | 3/4 | 1 | 115 | 90 | TVTR-3000A | 5.0 |
| AM-2/2.5 | 1250 | 1700 | 170 | 1.1/8 | 27 | 25 | 1/2 | 1 | 115 | 120 | TVT-600A | 7.0 |
| AM-5 | 2000 | 2700 | 275 | 1.3/8 | 36 | 5 | 3/4 | 1 | 136 | 91 | TVTR-5000A | 11.0 |
| AM-5/25 | 2000 | 2700 | 275 | 1.3/8 | 36 | 25 | 1/2 | 1 | 136 | 120 | TVT-1200A | 11.0 |
| AM-6 | 2500 | 3400 | 345 | 1.1/2 | 38 | 5 | 3/4 | 1.1/2 | 136 | 91 | TVTR-8400A | 8.5 |
| AM-6/25 | 2500 | 3400 | 345 | 1.1/2 | 38 | 25 | 1/2 | 1.1/2 | 136 | 120 | TVT-1200A | 11.5 |
| AM-7 | 4500 | 6000 | 622 | 1.7/8 | 48 | 5 | 3/4 | 1.1/2 | 168 | 115 | NT-55/R | 15.5 |
| AM-7/25 | 4500 | 6000 | 622 | 1.7/8 | 48 | 25 | 1/2 | 1.1/2 | 168 | 190 | TVT-3000A | 19.5 |
| AM-9/25 | 7000 | 9500 | 965 | 2.1/4 | 56 | 25 | 3/4 | 2.1/2 | 220 | 225 | TVT-5000A | 27.0 |
| AM-11/25 | 11060 | 15000 | 1500 | 3.3/4 | 68 | 25 | 3/4 | 2.1/2 | 220 | 180 | NT-14/S | 45.0 |

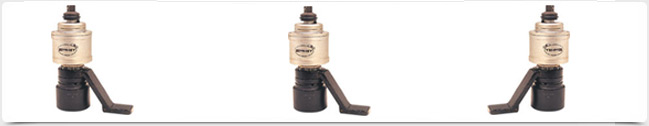

TVR - Series
| Model No. | Gear Ratio | Torque Capacity Max | Height mm (C) | Diameter mm (D) | Weight Kgs. | Input Drive (A) | Output Drive (B) | Suitable for Bolt size | ||
| Ft.Lbs | Nm | Thd. Size | A/F | |||||||
| TVR-15 | 4.5 : 1 | 1000 | 1355 | 175 | 80 | 3.0 | 1/2" | 1" | M16-M27 | 24-41 |
| TVR-25 | 12 : 1 | 1350 | 1630 | 310 | 80 | 5.2 | 3/4" | 1" | M20-M30 | 30-55 |
| TVR-35 | 15 : 1 | 2125 | 2880 | 285 | 80 | 5.1 | 3/4 | 1" | M20-M36 | 30-60 |
| TVR-40 | 15 : 1 | 2360 | 3200 | 245 | 95 | 6.1 | 3/4" | 1.1/2" | M20-M39 | 30-60 |
| TVR-65 | 21 : 1 | 3660 | 4960 | 240 | 114 | 8.4 | 3/4" | 1.1/2" | M27-M42 | 41-65 |
| TVR-90 | 40 : 1 | 5075 | 6880 | 300 | 172 | 21.5 | 3/4" | 1.1/2" | M33-M48 | 50-75 |
