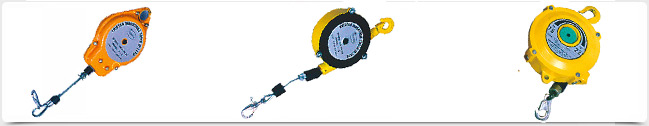

Tool Balancers



Model No Balancing Capacity Travel in Mtr. Rope Dia.Mm Unit weight
  Min. Kgs Max. Kgs
E-1 0.3 1.5 1.5 2.0 1.0
E-2 1.0 2.0 1.5 2.0 1.0
E-3 1.0 3.0 1.5 2.5 1.8
E-5 2.5 5.0 1.5 2.5 1.8
E-9 4.5 9.0 1.5 4.0 4.2
E-15 9.0 15.0 1.5 4.0 4.5
E-22 15.0 22.0 1.5 5.0 9.0
E-30 22.0 30.0 1.5 5.0 9.5
E-40 30.0 40.0 1.5 5.0 10.5
E-50 40.0 50.0 1.5 5.0 11.2
E-60 50.0 60.0 1.5 5.0 12.6
E-70 60.0 70.0 1.5 5.0 13.2
E-85 70.0 85.0 1.5 8.0 25.0
E-100 85.0 100.0 1.5 8.0 27.5
E-120 100.0 120.0 1.5 8.0 30.0
E-150 120.0 150.0 1.5 8.0 32.0
E-180 150.0 180.0 1.5 8.0 35.0
E-200 180.0 200.0 1.5 8.0 36.0
